| Electrical | Specification | Comments |
|---|---|---|
| Passive Intermodulation, 3rd Order1 | -160 dBc minimum, dynamic HALT | As per IEC 62037-2, -3, before, during and after HALT testing |
| Operating frequency | DC - 6 GHz | |
| Minimum Return Loss (VSWR) | < -28 dB (1.08) 617 - 960 MHz
< -28 dB (1.08) 1700 - 2200 MHz < -25 dB (1.08) 2200 - 2700 MHz |
As per Anatel 75 |
1 100% of jumpers factory-tested with result available via web-based portal (link below)
| Highly Accelerated Life Tests (HALT) | Specification | Comments |
|---|---|---|
| Mechanical stress, dynamic | Meets electrical performance in above table before, during, and after test. | As per IEC 62037-2, -3 |
| Peak pull strength | > 350 lb min, ½” annular jumpers | Cable limited, cable must fail before connection |
| Cable torque | > 60 lbf·in min, ½” annular jumpers | Cable limited, cable must fail before connection |
| Thermal shock | Meets electrical performance in above table before and after test. | As per Anatel 75, before, during, and after HALT testing |
| Thermal stress | Meets electrical performance in above table before, during, and after test. | -55 °C to +85 °C, cycled every 2 hours for 30 days minimum |
| Moisture migration | Meets electrical performance in above table before, during, and after test. No dye present past seals at 10X magnification. | ANSI/SCTE 60 5 day submersion with thermal cycling. |
| Corrosion resistance | Corrosion must not penetrate plating into base metals; plating must stay adhered to base metal. | ASTM B117-94, 1000 hour duration |
| UV exposure | Materials must show no signs of discoloration or embrittlement after 12 months exposure, equal to 33.4 years outdoors. | Full UV spectrum (UVA, UVB, UVC), 12 months exposure with moisture present per ASTM G155 |
| Vibration | Meets electrical performance in above table before, during, and after test |
| Jumper part number and description samples | |
|---|---|

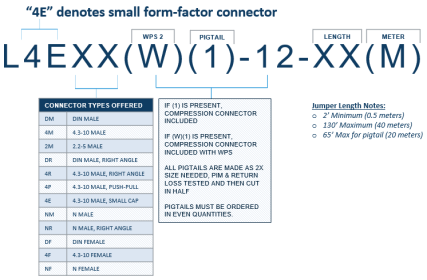

| L4E4MW-12-8 | Jumper, 4E to 4MT, ½” Annular, WPS, 8 ft |
| Customer Support | ||
|---|---|---|
| Jumper performance portal | ||
| Request connector training | ||
| Customer service | 1-315-431-7100 | customerservice@jmawireless.com |
