General | Specification | |||
---|---|---|---|---|

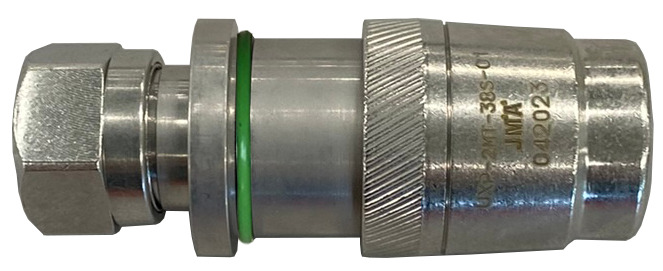

Interface/gender | 2.2-5 Male, torque type | |||
Cables supported1 | Manufacturer: | P/N | Manufacturer | P/N |
Eupen | EC2-50-HF | Amphenol | AFY-50-38SLL-PE | |
Weight | 0.212 lb | 96.2 g | |||
JMA Weather Protection System | WPS-4MT-38S-01 |
Tools required | JMA part number | Comment |
---|---|---|
Cable preparation | SP-38S-01 | "SA" bit |
Connector compression | HCG-FRAMESET-38S, HCG-CC | |
Torque wrench | TQ-916-F6 | 6 lbf·ft | 8.13 N·m |
Frequency band | VSWR | Return loss (dB) |
---|---|---|
DC-1000 MHz | 1.02 | 40 |
1000–2000 MHz | 1.03 | 36 |
2000–4000 MHz | 1.05 | 32 |
4000–6000 MHz | 1.08 | 28 |
Electrical | Specification | Comment |
---|---|---|
Connector impedance | 50 ohm | |
Operating frequency band | DC–6 GHz | |
3rd order IMD dynamic, (PIM) | -161 dBc, typical; -155 dBc, min | IEC 62037-2, -3 |
DC test voltage | 2500 V | |
Center contact resistance | ≤ 1.0 milliohm | |
Outer contact continuity | 1.0 milliohm max. | |
Average power | 500 W @ 2 GHz | |
Peak power, max. | 13.2 kW | |
Insertion loss, typical | 0.05 dB | Per connector |
Shielding effectiveness | < -120 dB | @ 0-1 GHz |
Mechanical | Specification | Comment |
---|---|---|
Pull force combined | .78 kN | >175 lb | Cable limited |
Cable retention torque | 6.7 N·m | 5 lbf·ft | Cable limited |
Interface durability | 100 cycles | IEC 61169-4:9.5 |
Environmental | Specification | Test |
---|---|---|
Operating temperature | -55 °C to +85 °C (-67 °F to 185 °F) | |
Storage temperature | -55 °C to +85 °C (-67 °F to 185 °F) | |
Accelerated UV | 1000 hr | ASTM G154 |
Immersion test method | Mated & unmated, IP68 | IEC 60529:2001 & ANSI/SCTE 60 |
Water jetting test method | Mated & unmated, IP66 | IEC 60529:2001 |
Mechanical shock test method | Pass | IEC 60068-2-27 |
Thermal shock test method | Pass | IEC 60068-2-14 |
Vibration test method | 100 m/s2, 2 Hz to 200 Hz | IEC 61169-1:2003 |
Corrosion test method | 1000 hr | IEC 60068-2-11 |
1For cable types not listed, please contact JMA Technical Support. |
