CYL2Q16GR-1xy

NWAV™ Cylinder Antenna

Download this datasheet

16-port cylinder antenna 1695-5925 MHz: 8 ports 1695-2690 MHz, 4 ports 3400-4200 MHz, and 4 ports 5150-5925 MHz
Small Cell Omni antenna with integrated GPS unit Future-proof design to support up to 4200 MHz for LS6 spectrum Increased CBRS and LS6 gain Supports multi-carrier deployments with 4x4 MIMO capability with all bands Symmetrical pattern performance across all 8 ports 1695-2690 Excellent cross-polar discrimination for enhanced MIMO performance Center-mounted lift ring for easy installations

16-port cylinder antenna 1695-5925 MHz:

8 ports 1695-2690 MHz, 4 ports 3400-4200 MHz, and 4 ports 5150-5925 MHz

Small Cell Omni antenna with integrated GPS unit
Future-proof design to support up to 4200 MHz for LS6 spectrum
Increased CBRS and LS6 gain
Supports multi-carrier deployments with 4x4 MIMO capability with all bands
Symmetrical pattern performance across all 8 ports 1695-2690
Excellent cross-polar discrimination for enhanced MIMO performance
Center-mounted lift ring for easy installations

	GPS band	Mid band				CBRS/LS6		LAA band
Frequency bands, MHz	1575.42	(4x) 1695-2690				(2x) 3400-4200		(2x) 5150-5925
Array	--	Y1	Y2	Y3	Y4	P1	P2	O1	O2
Connector	1 PORT	8 PORTS				4 PORTS		4 PORTS
Polarization	RH CIR.	XPOL				XPOL		XPOL
Horizontal beamwidth (HBW), degrees¹	--	360				360		360
Electrical downtilt (EDT), degrees¹	--	2, 4, 6				0		0
Configuration	Omni antenna with integrated GPS unit
Connector type	(16x) 4.3-10 female and (1x) N-type female for GPS
Dimensions, in. (mm)	24.0/ 14.6 (609.6/ 370.8)
Maximum composite power, watts (all ports)	1000

Radome color	Gray (Pantone 420C)	Brown (Pantone 476C)	Black (RAL 9011)
Radome color

Electrical specifications Mid Band Y1 Y2 Y3 Y4
Frequency range, MHz	(4x) 1695-2690
Frequency sub-range, MHz	1695-1880	1850-1990	1920-2200	2300-2690
Polarization	(4x) ± 45°
Gain, BASTA, dBi	7.2 ± 0.4	7.6 ± 0.6	8.1 ± 0.5	8.9 ± 0.3
Gain, MAX, dBi	7.6	8.2	8.6	9.2
Horizontal beamwidth (HBW), 3 dB, degrees¹	360	360	360	360
Vertical beamwidth (VBW), 3dB, degrees¹	21.5 ± 2.5	20 ± 0.5	18.5 ± 1.5	15.7 ± 1.1
Electrical downtilt (EDT), degrees	2 or 4 or 6
Impedance, ohms	50
VSWR	≤ 1.5:1
PIM, 2x20W carrier, dBc	< -153
Isolation, intra-band, dB	>25
Isolation, inter-band, dB	>28
Input power per port, watts	125

For optimal 4x4 MIMO performance, we would recommend the following port combinations be used together: Y1-Y2 and Y3-Y4

Electrical specification CBRS/LS6 P1 P2
Frequency range, MHz	(2x) 3400-4200
Polarization	(2x) ± 45°
Gain, BASTA, dBi	7.8 ± 0.8
Gain, MAX, dBi	8.6
Horizontal beamwidth (HBW), 3 dB, degrees¹	360
Vertical beamwidth (VBW), 3dB, degrees¹	23 ± 3.5
Electrical downtilt (EDT), degrees	0
Impedance, ohms	50
VSWR	≤ 1.5:1
Isolation, intra-band, dB	>25
Isolation, inter-band, dB	>28
Input power per port, watts	100

Electrical specification LAA Band O1 O2
Frequency range, MHz	(2x) 5150-5925
Polarization	(2x) ± 45°
Gain, BASTA, dBi	5 ± 0.6
Gain, MAX, dBi	5.8
Horizontal beamwidth (HBW), 3 dB, degrees¹	360
Vertical beamwidth (VBW), 3dB, degrees¹	21.8 ± 2.5
Electrical downtilt (EDT), degrees	0
Impedance, ohms	50
VSWR	≤ 1.5:1
Upper side lobe suppression, dB	Complies with FCC (UNI-I) specifications
Isolation, intra-band, dB	>25
Isolation, inter-band, dB	>28
Input power per port, watts	50

¹ Typical value over frequency and tilt.

Integrated GPS unit
Frequency range, MHz	1575.42 ± 10
Polarization	Right hand circular
Nominal gain, dBic	3 at 90°; -2 at 20°
Current draw, mA	22 @ 5V
Out-of-band rejection, dB	> 55 at 1559 MHz; > 60 at 1625 MHz
Amplifier gain, dB	28 ± 3
Nominal impedance, ohms	50
Noise figure, dB	3.9
DC voltage, dB	3.9
VSWR	< 2.0:1
Connector	N-type female

Mechanical specifications
Dimensions height/diameter, inches (mm)	24.0/ 14.6 (609.6/ 370.8)
Antenna volume (cubic feet)	2.32
No. of RF input ports, connector type, and location	16 x 4.3-10 RF, 1 x N-type GPS female, bottom
RF connector torque	96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg)	30 (13.6)
Rated wind survival speed, mph (km/h)	150 (241)
Frontal wind loading @ 160 km/h, lbf (N)	30 (133)
Equivalent flat plate @ 100 mph and Cd=2, sq ft	1.9/0.175

Array topology

8 sets of radiating arrays

Y1: 1695-2690 MHz

Y2: 1695-2690 MHz
Y3: 1695-2690 MHz
Y4: 1695-2690 MHz

P1: 3400-4200 MHz

P2: 3400-4200 MHz

O1: 5150-5925 MHz

O2: 5150-5925 MHz

Band	RF port
1695-2690	1-2
1695-2690	3-4
1695-2690	5-6
1695-2690	7-8
3400-4200	9-10
3400-4200	11-12
5150-5925	13-14
5150-5925	15-16

Front view	End view
	The 0 degree reference arrow corresponds to the 0 degree position in the antenna pattern file. Each antenna pattern file uses a top down orientation view (the patterns are viewed from the top of the antenna looking down).

	End view details: 6 stud bolts for direct mount to the Universal Sleeve (SC-BKT-SLA)

Notes on mounting brackets	Example bracket configuration
The antenna comes with the bottom mount studs (marked as 1 ) factory-installed. JMA cylinder brackets are compatible with bottom mount via universal cantenna mount sleeve (marked as 2 ) (SC-BKT-SLA), sold separately with JMA cylinder mounting systems. To mitigate potential risk of PIM issues, the recommended torque values need to be applied.

Ordering information
Antenna model					Description
CYL2Q16GR-1xy R represents the selected Radome color of GRAY (G), BROWN (W), or BLACK (B) xy= fixed electrical tilt for 1695-2690 MHz in degrees x= arrays Y1 & Y2 y= arrays Y3 & Y4					2ft 16 Port OMNI antenna 8MB 4CBRS 4LAA with GPS
Model	Radome color (R)	Tilt configuration			Radome color and tilt configuration description
Model	Radome color (R)	Y1-Y4 (x,y)	P1 P2	O1 O2	Radome color and tilt configuration description
CYL2Q16GG-122	GRAY (G)	2°	0	0	2ft 16 Port antenna with GRAY Radome and 2° & 2° tilt settings
CYL2Q16GG-124		Y1&Y2=2°,Y3&Y4=4°	0	0	2ft 16 Port antenna with GRAY Radome and 2° & 4° tilt settings
CYL2Q16GG-126		Y1&Y2=2°,Y3&Y4=6°	0	0	2ft 16 Port antenna with GRAY Radome and 2° & 6° tilt settings
CYL2Q16GG-144		4°	0	0	2ft 16 Port antenna with GRAY Radome and 4° & 4° tilt settings
CYL2Q16GG-146		Y1&Y2=4°,Y3&Y4=6°	0	0	2ft 16 Port antenna with GRAY Radome and 4° & 6° tilt settings
CYL2Q16GG-166		6°	0	0	2ft 16 Port antenna with GRAY Radome and 6° & 6° tilt settings
CYL2Q16GW-122	BROWN (W)	2°	0	0	2ft 16 Port antenna with BROWN Radome and 2° & 2° tilt settings
CYL2Q16GW-124		Y1&Y2=2°,Y3&Y4=4°	0	0	2ft 16 Port antenna with BROWN Radome and 2° & 4° tilt settings
CYL2Q16GW-126		Y1&Y2=2°,Y3&Y4=6°	0	0	2ft 16 Port antenna with BROWN Radome and 2° & 6° tilt settings
CYL2Q16GW-144		4°	0	0	2ft 16 Port antenna with BROWN Radome and 4° & 4° tilt settings
CYL2Q16GW-146		Y1&Y2=4°,Y3&Y4=6°	0	0	2ft 16 Port antenna with BROWN Radome and 4° & 6° tilt settings
CYL2Q16GW-166		6°	0	0	2ft 16 Port antenna with BROWN Radome and 6° & 6° tilt settings
CYL2Q16GB-122	BLACK (B)	2°	0	0	2ft 16 Port antenna with BLACK Radome and 2° & 2° tilt settings
CYL2Q16GB-124		Y1&Y2=2°,Y3&Y4=4°	0	0	2ft 16 Port antenna with BLACK Radome and 2° & 4° tilt settings
CYL2Q16GB-126		Y1&Y2=2°,Y3&Y4=6°	0	0	2ft 16 Port antenna with BLACK Radome and 2° & 6° tilt settings
CYL2Q16GB-144		4°	0	0	2ft 16 Port antenna with BLACK Radome and 4° & 4° tilt settings
CYL2Q16GB-146		Y1&Y2=4°,Y3&Y4=6°	0	0	2ft 16 Port antenna with BLACK Radome and 4° & 6° tilt settings
CYL2Q16GB-166		6°	0	0	2ft 16 Port antenna with BLACK Radome and 6° & 6° tilt settings

Small Cell solutions and mounting systems (sold separately)
Side Arm Mounting System	SC-BKT-SA-(color)	Wide Diameter Pole	SC-BKT-WTPE-(color)
Steel Pole Mounting System	SC-BKT-SLA (color)

Polar patterns

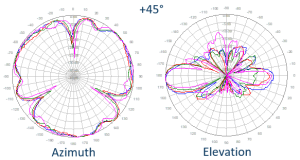

	Y1-Y4, 2° Tilt

	Y1-Y4, 4° Tilt

	Y1-Y4, 6° Tilt

Polar patterns
	P1-P2, 0° Tilt

	O1, 0° Tilt

V2.0

01/15/24
