CX08OHG236-1Cx



NWAV™ Cylinder Antenna


Download this datasheet

8-port cylinder antenna 1695-2690 MHz

  • High gain, high efficiency cylinder antenna to compliment 16T16R C-Band radios
  • Eliminates the need to combine AWS/PCS
  • 4T4R (or) 4T8R MIMO-capable
  • Symmetrical pattern performance across all ports
  • Excellent cross-polar discrimination for superior MIMO performance
  • Array architecture optimized to provide maximum gain for 1695-2200 MHz

Electrical specification (min/max) Ports 1, 2, 3, 4, 5, 6, 7, 8
Frequency bands, MHz 1695-1880 1850-1990 1920-2200 2300-2690
Polarization ± 45°
Gain, dBi (max) 10.9 11.5 12.7 12.5
Gain, dBi (average) 10.4 ± 0.5 11.1 ± 0.4 12.2 ± 0.5 12.1 ± 0.4
Horizontal beamwidth (HBW), degrees1 360°
Vertical beamwidth (VBW), degrees1 14.5 13.5 12.0 11.1
Cross-polar discrimination over 360°1 18.0 19.0 19.0 18.0
Electrical downtilt (EDT), degrees 2° or 5° or 8°
Cross-polar isolation, dB1 25
Max VSWR / return loss, dB 1.5:1 / -14.0
Max PIM, 3rd order 2x20W carrier, dBc -153
Maximum input power port, watts 125
1 Typical value over frequency and tilt.
Mechanical specifications
Dimensions height/diameter, inches (mm)

24.0/ 14.6 (609.6/ 370.8)
Antenna volume (cubic feet) 2.91
No. of RF input ports, connector type, and location 8 x 4.3-10 female, bottom
RF connector torque 96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg) 23.8 (10.8)
Rated wind survival speed, mph (km/h) 150 (241)
Frontal wind loading @ 160 km/h, lbf (N) 47.6 (211)

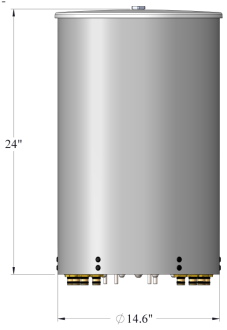

Front view End view
  The 0 degree reference arrow corresponds to the 0 degree position in the antenna pattern file. Each antenna pattern file uses a top down orientation view (the patterns are viewed from the top of the antenna looking down).

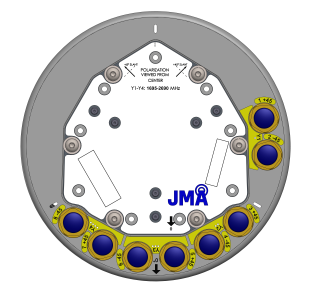

End view details: 6 stud bolts for direct mount to the Universal Sleeve (SC-BKT-SLA)
Ordering information
Antenna model Description
CX08OHG236-1Cx
(x represents the fixed down tilt value per 8 ports for 1695-2690 MHz		 2ft 8 Port OMNI antenna 8MB
x= 2, 5, or 8 deg FET per 8 ports (Y1, Y2, Y3, Y4) (1695-2690 MHz) value
Notes on mounting brackets Example bracket configuration
  • The antenna comes with the bottom mount studs (marked as 1 ) factory-installed.
  • JMA cylinder brackets are compatible with bottom mount via universal cantenna mount sleeve (marked as 2 ) (SC-BKT-SLA), sold separately with JMA cylinder mounting systems.
  • To mitigate potential risk of PIM issues, the recommended torque values need to be applied.
Small Cell solutions and mounting systems (sold separately)
Side Arm Mounting System SC-BKT-SA-(color) Wide Diameter Pole SC-BKT-WTPE-(color)
Steel Pole Mounting System SC-BKT-SLA (color)
Array topology

4 sets of radiating arrays

Y1: 1695-2690 MHz

Y2: 1695-2690 MHz
Y3: 1695-2690 MHz
Y4: 1695-2690 MHz
Band RF port
1695-2690 1-2
1695-2690 3-4
1695-2690 5-6
1695-2690 7-8

V3.0

10/16/25
